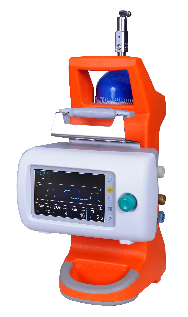

Neupak ST-102  Portable Ambulance Ventilator

Portable ventilator ST-102 supports reliable performance in daily challenge of saving people’ s lives, no matter where the calls take you. The ST-102 delivery the emergency transport with multi-functional usage to the patients wherever requires the emergency helps. All parameters set in one step makes every single process in easy way.


s


Detail Specification


Operating Panel: English (Standard),Chinese,Russian,French optional

Drive Gas :driven

Operating: Electronically controlled

Application: Applied for child and adult. Used for respiratory depression, respiratory paralysis and failure of emergency rescue Available in vehicle or portable stretcher.

Display: 7 inch LCD

Gas source: Pure air or Oxygen

Ventilation mode:  VCV, SIMV, A/C, SIGH, MANUAL, CPAP

Tidal volume: 20~2000ml

I:E 4:1~1:8

Breathing rate: 4-99/min, 4-65/min under SIMV

FiO2 :48%~100%

Pressure trigger sensitivity: -2~0kPa , PEEP 0-20cmH2O

Monitoring Parameters: Tidal volume, Minute volume, Breathing rate, Airway pressure

Alarms No VT, MV too high (low), Airway pressure too high(low), AC power off,

back-up battery too low, audio alarms or prompt hints

Power Battery, AC Power  220V/50Hz

Battery ≥ 2 hours

Basic configuration requirement Main body 1 Unit, Oxygen cylinder 3L*1 Unit, Silicon mask/circuit for medical use*1Piece, other accessories used to insure the basic operating.

Net Weight: 6.5Kg

Reserve Condition Temperature: -10~40degree, Relative humidity<90%

Working condition Temperature: 5~40 degree. Relative humidity< 80%

User manual English (standard),Chinese


For Download Brochure Click Here
